TD5 POLYURETHANE MATERIAL HANDLING HOSE

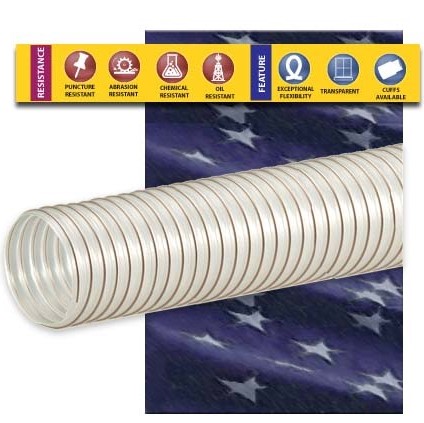

The TD5 hose is a clear thermoplastic polyurethane hose. It is very well suited for many material handling and ducting applications requiring both light weight and high abrasion resistance.

This hose is extremely flexible with superior chemical resistance, with a 0.03" wall thickness, and uses FDA acceptable materials.

Available in 25 and 50 foot sections as standards, and also in any length needed.  Also in black or with 2" soft cuffs if needed.  In season, the 10 foot lawn & leaf version is available.  (Uses right handed bridge clamps.)

Available in lighter and heaver weights, and in metric sizes.  Contact the factory for any of these options.

See the PH2 Hose for a heavier, PVC, clear material handling hose.

Temperature range -65F to 225F.
Related Products
Related Product
 Related Product
BRIDGE CLAMP PH2 MATERIAL HOSE
  Call or email to purchase or price

PDF Submittal Sheet


Dia
(in)
 Lngth-ft
(ft)
 Pres
(psi)
 Vac
(in Hg)
 Bend R
(in)
 Wt
(lbs)
 Product No
 Price
($)
2  25  30  29  2  7  TD50200-25  $185.00  Add to Cart >
2  50  30  29  2  14  TD50200-50  $365.00  Add to Cart >
2 1/2  25  30  29  2.5  9  TD50250-25  $215.00  Add to Cart >
2 1/2  50  30  29  2.5  18  TD50250-50  $425.00  Add to Cart >
3  25  29  29  3  12  TD50300-25  $215.00  Add to Cart >
3  50  29  29  3  23  TD50300-50  $425.00  Add to Cart >
4  25  25  29  4  20  TD50400-25  $270.00  Add to Cart >
4  50  25  29  4  40  TD50400-50  $435.00  Add to Cart >
5  25  22  17  5  26  TD50500-25  $315.00  Add to Cart >
5  50  22  17  5  52  TD50500-50  $625.00  Add to Cart >
6  25  19  15  6  32  TD50600-25  $320.00  Add to Cart >
6  50  19  15  6  63  TD50600-50  $645.00  Add to Cart >
8  25  14  9  8  43  TD50800-25  $415.00  Add to Cart >
8  50  14  9  8  86  TD50800-50  $825.00  Add to Cart >
10  25  11  4  8  46  TD51000-25  $575.00  Add to Cart >
10  50  11  4  8  92  TD51000-50  $1150.00  Add to Cart >
12  25  10  2.2  10  58  TD51200-25  $640.00  Add to Cart >
12  50  10  2.2  10  115  TD51200-50  $1275.00  Add to Cart >
14  25  8  3.3  12  72  TD51400-25  $800.00  Add to Cart >
14  50  8  3.3  12  144  TD51400-50  $1560.00  Add to Cart >
16  25  7  2.2  14  86  TD51600-25  $1000.00  Add to Cart >
16  50  7  2.2  14  173  TD51600-50  $2005.00  Add to Cart >
18  25  6  1.4  16  95  TD51600-25  $1200.00  Add to Cart >
18  50  6  1.4  16  190  TD51800-50  $2400.00  Add to Cart >
20  25  5.5  1  18  106  TD52000-25  $1350.00  Add to Cart >
20  50  5.5  1  18  213  TD52000-50  $2695.00  Add to Cart >
22  25  5  .9  20  118  TD52200-25  $1480.00  Add to Cart >
22  50  5  .9  20  236  TD52200-50  $2965.00  Add to Cart >
24  25  4  .75  22  118  TD52400-25  $1615.00  Add to Cart >
24  50  5  .9  20  236  TD52400-50  $3230.00  Add to Cart >
