TD1 THERMOPLASTIC RUBBER DUCT HOSE

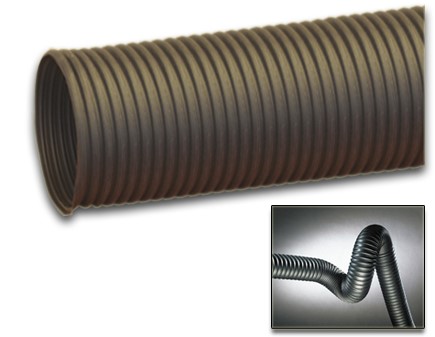

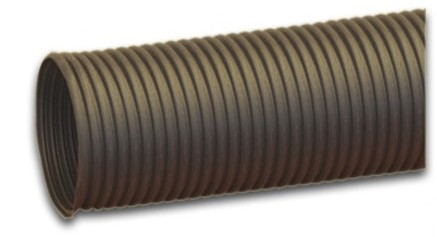

The Model TD1 is a versatile thermoplastic rubber duct hose, reinforced with a spring steel wire helix. It is very well suited to most lower pressure industrial duct, fume and exhaust jobs, as well as light material handling such as dust, and many more.

This versatile hose has excellent chemical, moisture, abrasion, and UV resistance, and has a smooth interior for efficient flow.

It is also available in a heavy weight, metric sizes, or with 2" long soft cuffs, or in any length needed in addition to the standards shown below (contact factory). Also available as the TD4 white duct hose for FDA acceptable materials, or with an optional external yellow wear strip.

Normally clamped with right handed bridge clamps. J-Lock or Latch-Lock fittings are also available, or sometimes a seal is made with silicone tape.

Temperature range is -40F to 275F.
Related Products
Related Product
 Related Product
BRIDGE CLAMP TD4 THERM DUCT FDA
Related Product
 Related Product
J-LOCK FITTINGS LATCH LOCK FITTINGS
  Call or email to purchase or price

PDF Submittal Sheet


Dia
(in)
 Lngth-ft
(ft)
 Pres
(psi)
 Vac
(in Hg)
 Bend R
(in)
 Wt
(lbs)
 Product No
 Wt/Ft
(lbs)
 Price
($)
1 1/2  25  24  29  1.5  6.3  TD10150-25  .22  $125.00  Add to Cart >
1 1/2  50  24  29  1.5  13  TD10150-50  .22  $150.00  Add to Cart >
2  25  17  29  1.6  6.9  TD10200-25  .24  $125.00  Add to Cart >
2  50  17  29  1.6  .24  TD10200-50  .24  $150.00  Add to Cart >
2 1/2  25  13  28  2  8.3  TD10250-25  .29  $125.00  Add to Cart >
2 1/2  50  13  28  2  17  TD10250-50  .29  $150.00  Add to Cart >
3  25  10  28  2.5  9.2  TD10300-25  .32  $125.00  Add to Cart >
3  50  10  28  2.5  18  TD10300-50  .32  $225.00  Add to Cart >
3 1/2  25  10  26  3  12  TD10350-25  .42  $130.00  Add to Cart >
3 1/2  50  10  26  3  24  TD10350-50  .42  $255.00  Add to Cart >
4  25  10  25  3.2  14  TD10400-25  .50  $135.00  Add to Cart >
4  50  10  25  3.2  29  TD10400-50  .50  $270.00  Add to Cart >
5  25  9  15  3.9  18  TD10500-25  .63  $143.00  Add to Cart >
5  50  9  15  3.9  36  TD10500-50  .63  $286.00  Add to Cart >
6  25  8  11.5  4.3  24  TD10600-25  .85  $159.00  Add to Cart >
6  50  8  11.5  4.3  49  TD10600-50  .85  $318.00  Add to Cart >
7  25  7  10  5  27  TD10700-25  .95  $181.00  Add to Cart >
7  50  7  10  5  55  TD10700-50  .95  $362.00  Add to Cart >
8  25  4  5.5  5.8  35  TD10800-25  1.20  $204.00  Add to Cart >
8  50  4  5.5  5.8  69  TD10800-50  1.20  $408.00  Add to Cart >
10  25  4  5.5  6.9  49  TD11000-25  1.70  $271.00  Add to Cart >
10  50  4  5.5  6.9  98  TD11000-50  1.70  $541.00  Add to Cart >
12  25  3.5  4  8.2  55  TD11200-25  1.90  $323.00  Add to Cart >
12  50  3.5  4  8.2  109  TD11200-50  1.90  $646.00  Add to Cart >
14  25  3.4  3  10  86  TD11400-25  3.00  $403.00  Add to Cart >
14  50  3.4  3  10  173  TD11400-50  3.00  $807.00  Add to Cart >
16  25  2.6  2.3  11  101  TD11600-25  3.50  $520.00  Add to Cart >
18  25  2.3  1.6  12  112  TD11800-25  3.90  $620.00  Add to Cart >
20  25  2.1  1.2  13.5  124  TD12000-25  4.30  $740.00  Add to Cart >
22  25  1.9  .9  15  127  TD12200-25  4.40  $870.00  Add to Cart >
24  25  1.75  .7  16  138  TD12400-25  4.80  $886.00  Add to Cart >
