TD10 HIGH TEMPERATURE DUCT HOSE

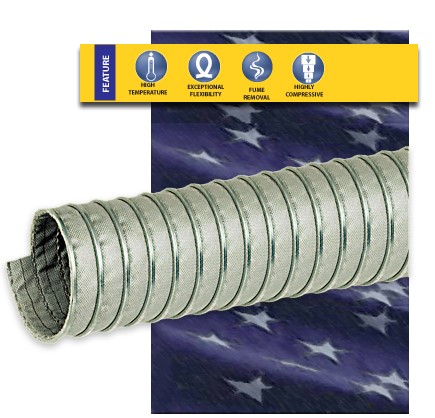

The TD10 is a highly flexible duct made of a fine wire reinforced cereramic cloth that is chemically treated and coated.  It is used for high temperature fume recovery up to 1000F, and is flame resistant. (Air velocity should be les 150 ft/sec.) Uses a galvanized steel helix.

Standard lengths are 25 feet, but any length can be made (contact factory).

Temperature range from -200F to 1000F. For diameters >12", contact factory.

ory.
Related Products
Related Product
 Related Product
TD10HT HIGH TEMP DUC FD1 SILICONE DUCT
  Price & Purchase Configurator
Choose details to price,
then add to your cart!
  PDF Submittal Sheet

Dia
(in)
 Pres
(psi)
 Vac
(in Hg)
 Wt
(lbs)
 Wt/Ft
(lbs)
3  6.8  4.5  25  .86
4  3.7  2.1  39  1.35
5  3  1.6  49  1.70
6  2.3  1.2  66  2.3
8  1.4  .7  95  3.3
10  1  .45  127  4.4
12  .75  .3  150  5.2
14  .75  .3  152  5.3
16  .75  .3  250  8.7
18  .75  .3  262  9.1
20  .75  .3  285  9.9
22  .75  .3  290  10.1
24  .75  .3  296  10.3
