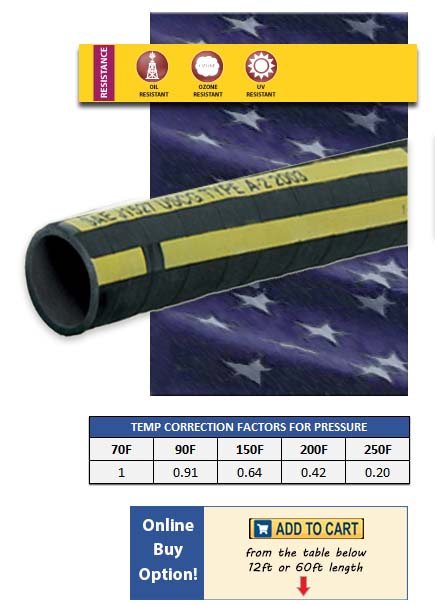

RV2 OVER THE PIPE HOSE





The Model RV2 Over the Pipe Hose can slip over piping outer diameters for a sleeve fit.  It is available in a wide range of diameters to both fit over pipe, and for other purposes, such as marine exhaust.  SAE J2006R2.

It has an black NITRILE tube and a BLACK NEOPRENE cover, and is reinforced with 2 plies of polyester fabric and a wire helix.  The wire helix construction provides excellent flexibility and helps prevent kinking.  The hose is also available without a wire reinforcement in the RV1 hose.

Not for steam service.

Temperature range is -30F to 212F.


Related Products
Related Product
 Related Product
RV1 OVER PIPE HOSE T-BOLT CLAMP
Related Product
WORM GEAR CLAMP
  Price & Purchase Configurator
Choose details to price,
then add to your cart!


Dia
(in)
 Outer Dia
(in)
 Pres
(psi)
 Bend R
(in)
 Wt/Ft
(lbs)
1/2  .78  175  2.5  .24
5/8  .91  175  2.5  .27
3/4  1.06  175  2.5  .29
7/8  1.16  175  3  .34
1  1.28  175  3  .37
1 1/8  1.41  90  3  .41
1 1/4  1.53  90  3  .48
1 3/8  1.69  90  4  .54
1 1/2  1.81  90  4  .59
1 5/8  1.94  90  5  .62
1 3/4  2.06  90  5  .67
1 7/8  2.19  90  5  .70
2  2.31  90  6  .80
2 1/8  2.44  90  6  .88
2 1/4  2.56  90  6.5  .90
2 3/8  2.69  90  7  .92
2 1/2  2.81  90  8  1.00
2 5/8  2.94  90  6  1.05
2 3/4  3.06  90  10  1.10
2 7/8  3.19  90  11  1.13
3  3.31  90  13  1.18
3 1/2  3.81  90  16  1.44
4  4.31  90  18  1.59
4 1/2  4.81  90  24  1.85
5  5.31  90  32  2.04
6  6.31  90  36  2.36
