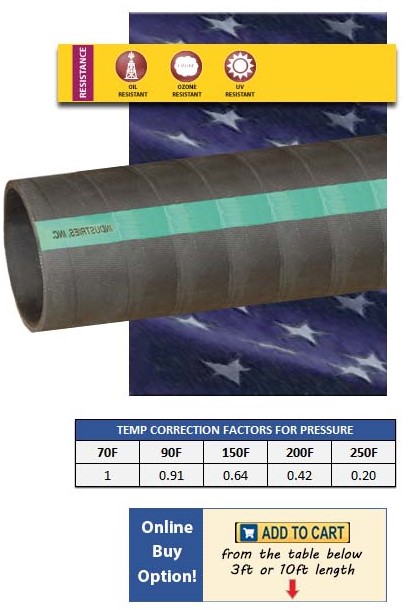

RV1 OVER THE PIPE HOSE





The Model RV1 hose can slip over piping outer diameters for a sleeve fit.  It is available in a wide range of diameters to both fit over pipe, and for other purposes, such as marine exhaust.  SAE J2006.

It has an black NITRILE tube and cover, and is reinforced with 2 plies of polyester fabric.  Also available with a wire reinforcement in the RV2 hose.  Not for steam service.

Temperature range is -40F to 210F.
Related Products
Related Product
 Related Product
RV2 OVER PIPE HELIX T-BOLT CLAMP
Related Product
WORM GEAR CLAMP
  Price & Purchase Configurator
Choose details to price,
then add to your cart!


Dia
(in)
 Outer Dia
(in)
 Pres
(psi)
 Wt/Ft
(lbs)
1 1/2  1.96  200  .89
1 5/8  2.08  185  .96
1 3/4  2.26  175  1.11
1 7/8  2.38  160  1.19
2  2.50  150  1.25
2 1/8  2.63  150  1.31
2 1/4  2.76  140  1.38
2 3/8  2.80  250  1.33
2 1/2  3.07  250  1.80
2 5/8  3.13  225  1.75
2 3/4  3.31  220  1.98
2 7/8  3.43  220  2.05
3  3.54  210  2.07
3 1/2  4.05  180  2.44
4  4.60  150  3.11
4 1/2  5.18  140  3.85
5  5.69  130  4.31
5 1/2  6.21  120  4.81
6  6.73  110  5.48
6 5/8  7.37  100  6.02
