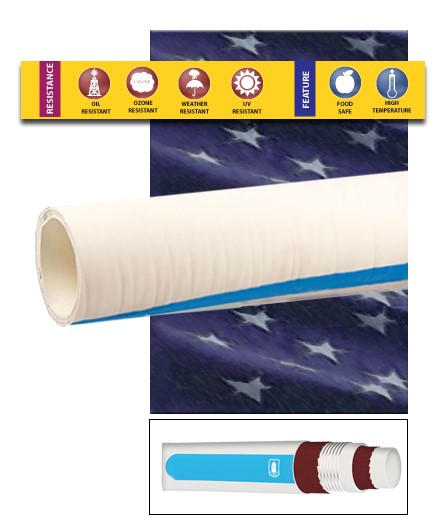

Overview: The Model RS4 Sanitary Suction Hose is a high quality FDA/USDA food hose with a white Nitrile tube and white or gray Neoprene abrasion resistant hose cover. It is highly resistant to animal fat and vegetable oils, for suction and transfer. Reinforcement is high tensile strength tire cord plies, and a dual helix wire.
Features:
- Meets FDA and USDA requirements
- Abrasion Resistant Cover
- Availble with Factory Coupled Sanitary, or any other Fittings Required
Applications:
- Conveying Oily and Non-oily Edible Products and Potable Water for Suction or Transfer
Temperature: -22 to 185F
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|---|---|
| 1 1/2 | 2-1/64 | 150 | 29 | 3-3/4 | 0.93 | 4 |
| 2 | 2-33/64 | 150 | 29 | 5 | 1.20 | 4 |
| 2 1/2 | 3-3/64 | 150 | 29 | 6 | 1.71 | 4 |
| 3 | 3-35/64 | 150 | 29 | 7 | 2.09 | 4 |
| 4 | 4-40/64 | 150 | 29 | 9 | 2.94 | 4 |
