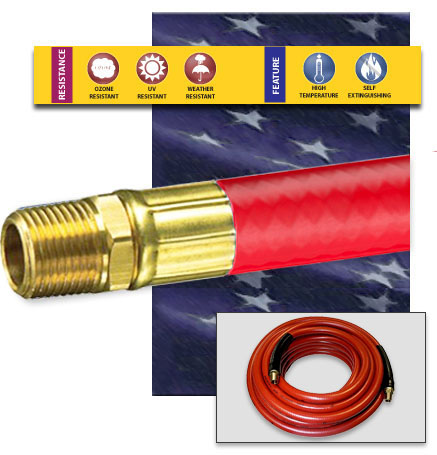

Overview: The Model PA1 is a lightweight and economical PVC hose mainly used for compressed air to pneumatic tools and equipment. Available as 25, and 50ft assemblies, in 1/4" and 3/8", with brass NPT thread ends that can be purchased below. Also available in full reels.
Note that the PVC may hold its shape, especially in cold weather. See the PM1 PTE Air Hose or the RM2 EPDM Rubber Air Hose as alternatives.
Features:
- Economical
- Smooth Cover that Resists Abrasion when Dragged
- Easily Cleaned & Non-Marking
- Weighs Considerably Less than Rubber Alternatives
- 300psi
Applications:
- Compressed Air for Pneumatic Tools and Equipment
Temperature: 0F to 150F
scroll to see more products
|
Dia (in)
|
Length (in)
|
Lngth-ft (ft)
|
Fittings |
Pres (psi)
|
Wt (lbs)
|
Product No |
Wt/Ft (lbs)
|
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 25 | 25 | 1/4 BRASS MALE EACH END | 300 | 2 | HOSE-PA1ASRED25MM0025 | 0.075 | $26.87 | 3 | Add to Cart |
| 1/4 | 50 | 50 | 1/4 BRASS MALE EACH END | 300 | 4 | HOSE-PA1ASRED50MM0025 | 0.075 | $30.45 | 3 | Add to Cart |
| 3/8 | 25 | 25 | 1/4 BRASS MALE EACH END | 300 | 3 | HOSE-PA1ASRED25MM0038 | 0.100 | $20.75 | 3 | Add to Cart |
| 3/8 | 50 | 50 | 1/4 BRASS MALE EACH END | 300 | 5 | HOSE-PA1ASRED50MM0038 | 0.100 | $37.65 | 3 | Add to Cart |
