MD3 STAINLESS STEEL DUCT HOSE

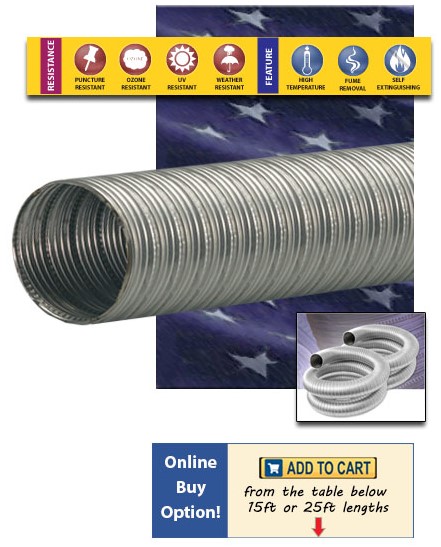

The MD3 High Temperature Duct Hose is a 316Ti titanium stabilized stainless steel duct hose is suitable for very tough fume & air exhaust applications with extremely high temperatures up to 1650F.  The hose is flexible, self supporting, and can handle corrosive applications where either positive or negative pressures are involved.   0.006 wall thickness.

It comes in standard lengths of 25ft (3" to 8"), and 15ft (9" to 12"), which can be coupled with screws if needed.  Special lengths are available (contact factory).  The 25ft coils can be shipped via UPS.

Also available in as the MD2 stainless steel duct hose, rated to 800F.

Temperature range -80 to 1650F.



Related Products
Related Product
 Related Product
MD2 SS DUCT HOSE MD1 ALUM DUCT HOSE
Related Product
HOT HOSE SLEEVE
  Call or email to purchase or price



Dia
(in)
 Lngth-ft
(ft)
 Pres
(psi)
 Vac
(in Hg)
 Bend R
(in)
 Wt
(lbs)
 Product No
 Price
($)
3  25  18  29  13  13  MD30300  $400.00  Add to Cart >
4  25  15  29  15  20  MD30400  $518.00  Add to Cart >
5  25  13  29  17  23  MD30500  $655.00  Add to Cart >
5 1/2  25  12  29  19  28  MD30550  $585.00  Add to Cart >
6  25  11  29  24  30  MD30600  $735.00  Add to Cart >
7  25  9.5  29  26  35  MD30700  $817.00  Add to Cart >
8  25  8.5  29  28  39  MD30800  $932.00  Add to Cart >
9  15  8  29  30  23  MD30900  $636.00  Add to Cart >
10  15  6  29  32  27  MD31000  $788.00  Add to Cart >
11  15  5.5  29  34  29  MD31100  $858.00  Add to Cart >
12  15  5  29  37  32  MD31200  $916.00  Add to Cart >
