MD2 STAINLESS STEEL DUCT HOSE

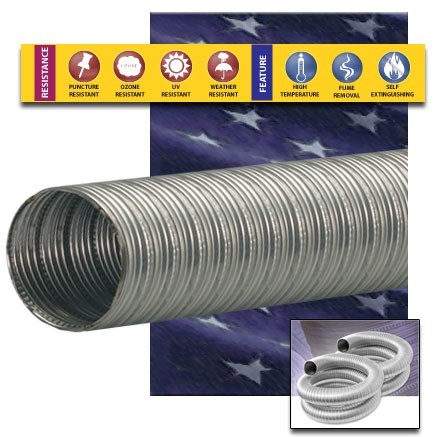

The MD2 316 Stainless Steel Duct Hose is for light weight and hand bendable applications that need to be self-supporting and stationary.  This metal duct hose is suitable for harsh chemical fumes and high temperatures.

Comes in standard lengths of 5 or 10 feet, which can be coupled with screws, but special lengths can be made (contact factory).

12" w.g. pressure. 3:1 compression ration.  0.005 wall thickness.

Applications include chemical fumes, kilns, hot exhaust systems, flame resistant systems, HVAC, vehicle exhaust, and many others.

An aluminum version is available with the MD1 hose.  Also available as the MD3 stainless steel hose in a roll lock construction with a wall thickness of 0.006 that is rated to 1650F.

Temperature range -60 to 800F.



Related Products
Related Product
 Related Product
MD1 ALUM DUCT HOSE MD3 TISS DUCT HOSE
Related Product
HOT HOSE SLEEVE
  Call or email to purchase or price



Dia
(in)
 Lngth-ft
(ft)
 Bend R
(in)
 Wt
(lbs)
 Product No
 Wt/Ft
(lbs)
 Price
($)
2  5  2.1  1.3  MD20200-5  .2  $81.54  Add to Cart >
2  10  2.1  2.5  MD20200-10  .2  $141.28  Add to Cart >
3  5  3.3  1.9  MD20300-5  .31  $91.83  Add to Cart >
3  10  3.3  3.9  MD20300-10  .31  $161.87  Add to Cart >
4  5  4.3  2.4  MD20400-5  .38  $103.89  Add to Cart >
4  10  4.3  4.8  MD20400-10  .38  $185.98  Add to Cart >
5  5  5.4  3.1  MD20500-5  .5  $126.60  Add to Cart >
5  10  5.4  6.3  MD20500-10  .5  $223.44  Add to Cart >
6  5  6.5  3.7  MD20600-5  .59  $133.51  Add to Cart >
6  10  6.5  7.4  MD20600-10  .59  $237.26  Add to Cart >
7  5  7.5  4.3  MD20700-5  .68  $156.20  Add to Cart >
7  10  7.5  8.5  MD20700-10  .68  $275.12  Add to Cart >
8  5  8.7  4.4  MD20800-5  .7  $169.31  Add to Cart >
8  10  8.7  8.8  MD20800-10  .7  $301.35  Add to Cart >
10  5  10.8  5.5  MD20100-5  .88  $204.55  Add to Cart >
10  10  10.8  11  MD20100-10  .88  $366.66  Add to Cart >
12  5  13  6.9  MD20120-5  1.1  $241.31  Add to Cart >
12  10  13  13.8  MD20120-10  1.1  $433.74  Add to Cart >
