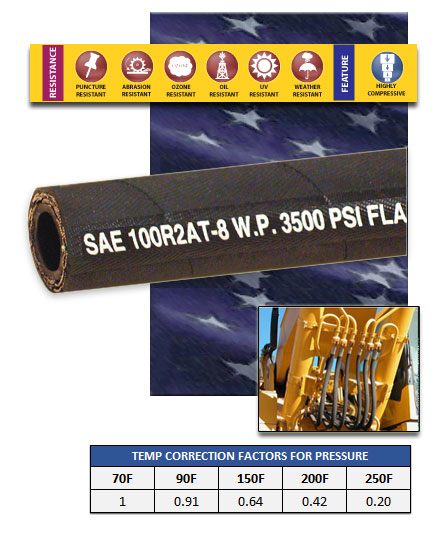

Overview: The Model HM2 is a rubber SAE 100R2AT high pressure hydraulic hose, that uses a black Nitrile tube and black Neoprene cover with two wire braid reinforcements. All hydraulic end fittings available. 1/4" to 2" diameters.
Features:
- MSHA Approved
- Meets SAE 100R2AT Standard
Applications:
- Hydraulic Oil
- Other High Pressure Systems
Temperature: -40F to 212F
scroll to see more products
|
Dia (in)
|
Pres (psi)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|
| 1/4 | 5000 | 4.0 | 0.91 | 2 |
| 3/8 | 4000 | 5.0 | 1.36 | 2 |
| 1/2 | 3500 | 7.0 | 1.82 | 2 |
| 5/8 | 2750 | 8.0 | 2.28 | 2 |
| 3/4 | 2250 | 9.5 | 2.73 | 2 |
| 1 | 2000 | 12.0 | 3.19 | 2 |
| 1 1/4 | 1625 | 16.5 | 3.65 | 2 |
| 1 1/2 | 1250 | 4.10 | 2 | |
| 2 | 1125 | 4.56 | 2 |
