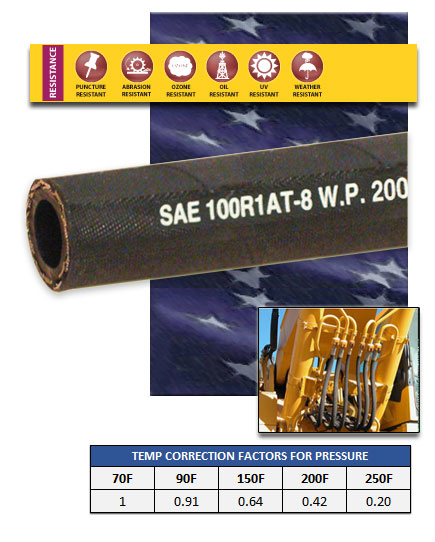

Overview: The Model HM1 is a rubber SAE 100R1AT hydraulic hose, that uses a black Nitrile tube and black Neoprene cover with one wire braid reinforcement. All hydraulic end fittings available. 3/16" to 1" diameters.
Features:
- MSHA Approved
- Meets SAE 100R1AT Standard
Applications:
- Hydraulic Oil
- Other High Pressure Systems
Temperature: -40F to 212F
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Pres (psi)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|---|
| 1/4 | 37/64 | 2500 | 3 3/8 | 0.34 | 2 |
| 5/16 | 43/64 | 2250 | 4 | 0.46 | 2 |
| 3/8 | 49/64 | 2000 | 4 5/8 | 0.57 | 2 |
| 1/2 | 59/64 | 1750 | 5 1/2 | 0.69 | 2 |
| 5/8 | 1 5/64 | 1500 | 7 3/8 | 0.80 | 2 |
| 1 | 1 1/2 | 1000 | 9 | 1.03 | 2 |
