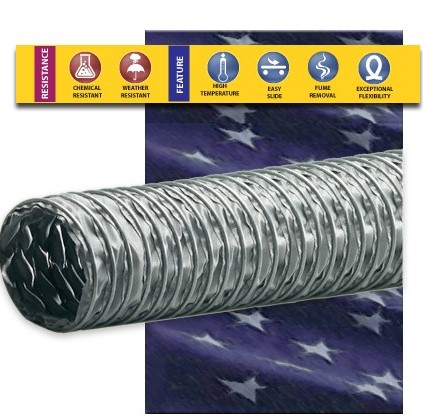

FD2 HIGH TEMP SILICONE EXHAUST HOSE





The FD2 is a top quality silver silicone coated fiberglass fabric duct hose for fume and exhaust at high temperatures.  It is extremely flexible and has a compression ratio of 5:1.  And the external scuff guard adds to the superior strength of the hose.

Standard lengths for the hose are 25 foot, but any length is available (contact factory).  The compression ratio is 6:1 up to 6" diameters, and 8:1 above that.

Also available with a Teflon coated interior for harsh chemicals.  Contact factory.

Temperature range is -65F to 550F.
Related Products
Related Product
 Related Product
FD1 SILICONE DUCT TD10 HIGH TEMP DUCT
  Call or email to purchase or price



Dia
(in)
 Lngth-ft
(ft)
 Pres
(psi)
 Vac
(in Hg)
 Wt
(lbs)
 Product No
 Wt/Ft
(lbs)
 Price
($)
3  25  11  4.1  12  FD20300-25  .46  $305.00  Add to Cart >
4  25  6  3.2  17  FD20400-25  .66  $420.00  Add to Cart >
5  25  4.7  3  20  FD20500-25  .78  $515.00  Add to Cart >
6  25  4  2.8  21  FD20600-25  .8  $620.00  Add to Cart >
8  25  3.7  2.5  26  FD20800-25  1  $680.00  Add to Cart >
10  25  3  2  31  FD21000-25  1.3  $875.00  Add to Cart >
12  25  2.5  1.5  34  FD21200-25  1.4  $970.00  Add to Cart >
14  25  .75  .3  92  FD21400-25  3.2  $1125.00  Add to Cart >
16  25  .75  .3  158  FD21600-25  5.5  $1310.00  Add to Cart >
18  25  .75  .3  170  FD21800-25  5.9  $1460.00  Add to Cart >
