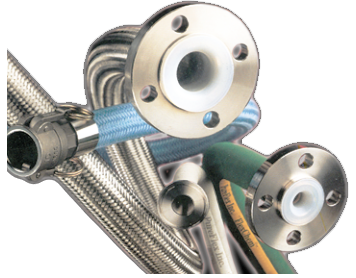

OVERVIEW: PTFE hoses are used in a variety of demanding applications throughout industry where chemical inertness or purity is important.
They are available with smooth or convoluted bores, braided in stainless or other materials, or rubber covered. All can be made with a complete variety of fittings, and with a number of other options.
-
TS2 PTFE SMOOTH BORE BRAIDED HOSE The TS2 SmoothFlex™ is a smooth bore PTFE hose with stainless steel or polypropylene braid reinforcement that is designed for a wide range of chemical resistant and high purity applications. The hose is available in standard white, and also anti-static black PTFE where electrostatic dissipation is required. Also available in both Nominal (SN) Dash Sizes as well as True Bore (ST) Full ID sizes. SIP & CIP. 1/8" to 1-1/8" diameters. -65°F to 450°F . -
TC2 PTFE CONVOLUTED BRAIDED HOSE The TC2 MultiFlex™ combines excellent flexibility with a high pressure rating with open pitch spiral PTFE convolutions. FDA approved materials meet or exceed Pharmacopoeia class VI and 3A standards. It is available in static-dissipating tube option, and with stainless steel or polypropylene braid. 1/2" to 3" diameters. -65F to 450F. -
TC3 PTFE CONVOLUTED BRAIDED HOSE The TC3 Ultra-Flexible Convoluted PTFE Hose for Heavy Duty Applications is made with the thickest seamless PTFE liner in the industry and offers the largest size range. It is available in a static dissipating tube option, and with stainless steel or polypropylene braid. 1/2" to 6" diameters. -65F to 450F. -
TC4 PFA CONVOLUTED BRAIDED HOSE The TC4 ProFlex™ PFA offers very long lengths up to 1,000 feet, excellent chemical resistance, and flexibility. PFA has the same chemical and temperature resistance as PTFE and much better flex life than FEP. ProFlex industrial grade PFA was designed for customer applications that don't require or need pharmaceutical grade hose. It is available with stainless steel or polypropolyene braid. 1/2" to 3" diameters. -65F to 450F. -
TR3 FEP RUBBER COVERED HOSE The TR3 FlexChem is a versatile, rubber covered FEP-lined transfer hose. This smooth bore FEP hose with its smooth EPDM rubber cover is easy to handle and resists abrasion and chemical attack while it facilitates easy cleanability. FlexChem series hose is available in white FEP or a PTFE conductive black liner where electrostatic dissipation is required. The FEP liner can be factory flared through: flanges; sanitary fittings; male and female cams. 1/2" to 4" diameters. -40F to 350F. -
TS5 PTFE BRAIDED SMOOTH EXTRA FLEX HOSE The TS5 Nexus™ is the Ultimate PTFE Hose, as it combines the best features of smooth bore and convoluted hose into one incredible flexible product; Nexus™. The smooth I.D. allows for outstanding clean-ability, and the convoluted O.D. allows for excellent flexibility. The Nexus™ is then covered in a 316 Stainless or polypropylene braiding. 3/4" to 2" diameters. -
MC2 COMPOSITE PTFE LINED CHEMICAL HOSE MC2 composite special chemical hose is very flexible, and has multiple layers of construction which safely prevent sudden catastrophic failure. PTFE inner liner. 1" to 4" diameters. -40F to 250F -
RC9 CL2 CHLORINE HOSE The RC9 CL2™ chlorine hose assemblies are specifically designed for the safe transfer of chlorine. It is ideal for loading/unloading barges, rail cars, tankers and filling cylinders. Services include Chlorine, Bromine, Sodium hypochlorite, sulfuric and hydrochloric acids, and other highly aggressive oxidizers or corrosives. It is light weight, easy to clean, and resists corrosion. RC9 CL2™ hose assemblies are 100% compliant with the Chlorine Institute's Pamphlet 6. 1/2" to 2" diameters. -40F to 225F.
